Datacenter PCIe Accelerator Co-Simulation Platform

·FPGA, PCIe, QEMU, Vivado, Systems·Source Code

Overview

Developed a comprehensive co-simulation platform that enables reproducible host-FPGA verification without requiring RTL changes. This platform bridges the gap between software simulation and hardware development.

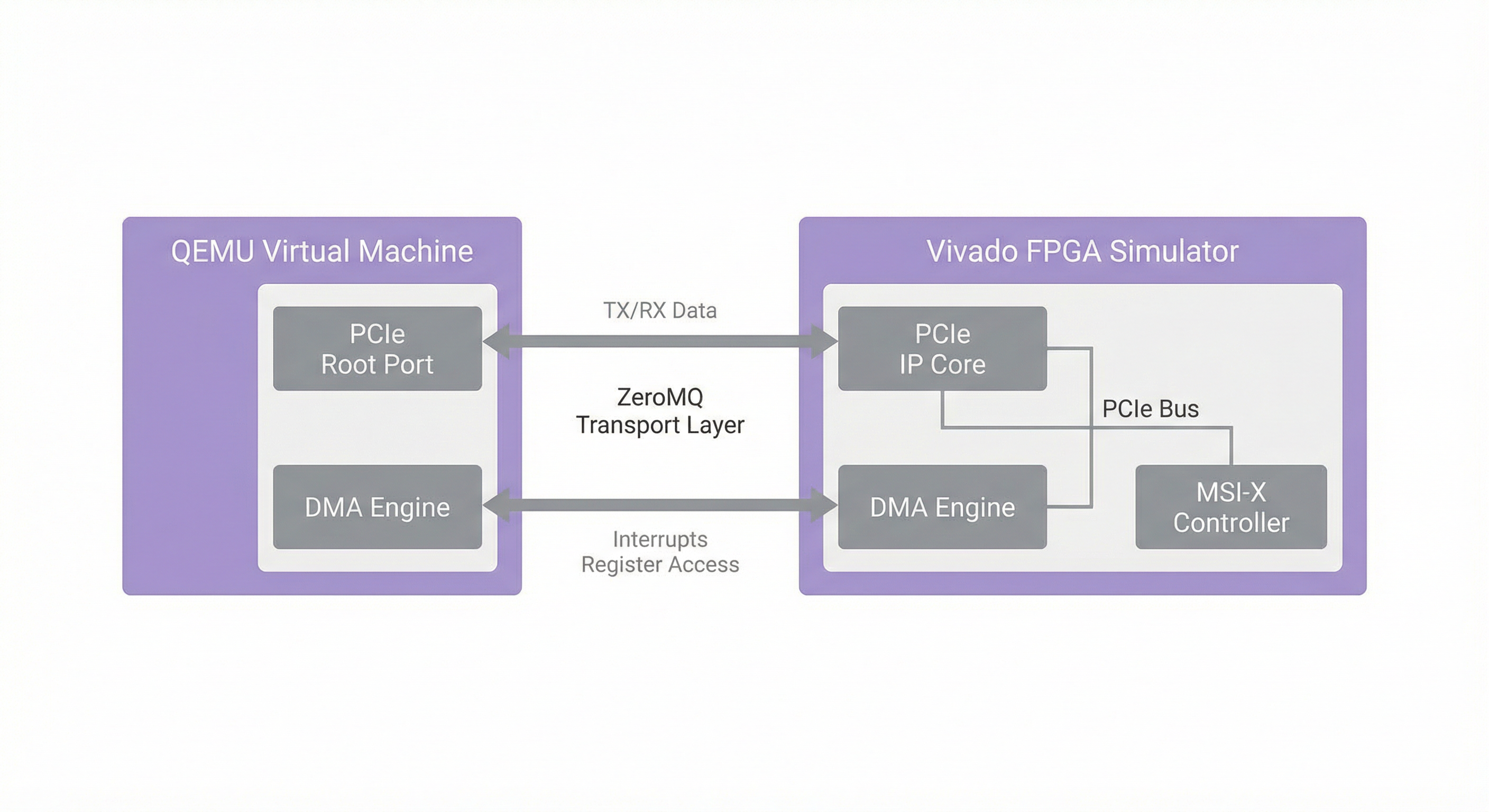

PCIe Co-Simulation Architecture
PCIe Co-Simulation Architecture

Architecture

QEMU Integration

  • Extended QEMU to support custom PCIe device models
  • Implemented device enumeration and BAR mapping
  • Created virtual PCIe fabric for host communication

Vivado Co-Simulation

  • Integrated Xilinx Vivado simulator with QEMU
  • Real-time RTL simulation alongside software execution
  • Cycle-accurate timing for hardware verification

DMA Engine

  • Implemented scatter-gather DMA for efficient data transfer
  • Memory-mapped I/O for control register access
  • Ring buffer management for high-throughput operations

MSI-X Interrupts

  • Full MSI-X interrupt support with multiple vectors
  • Interrupt coalescing for performance optimization
  • Low-latency interrupt delivery path

Transport Layer

ZeroMQ Integration

  • Asynchronous message passing between QEMU and Vivado
  • High-performance socket communication
  • Support for multiple simulation instances

NIC Bridge

  • Network interface card abstraction layer
  • Packet processing pipeline simulation
  • Integration with virtual network infrastructure

Benefits

  1. Reproducible Testing: Consistent simulation environment across development machines
  2. No RTL Changes: Test hardware designs without modifications
  3. Early Integration: Verify software-hardware interaction before tape-out
  4. Debugging: Full visibility into both software and hardware state

Technical Stack

  • Host Emulation: QEMU
  • RTL Simulation: Xilinx Vivado
  • IPC: ZeroMQ
  • Languages: C, Verilog, Python
